Working Principle

Characteristics

1, the use of imported advanced computer controller touch screen human-machine interface, fully automatic temperature control system with programmable control, control panel control, easy to use and adjust, can accurately control the water temperature up to 1C.

2, the use of imported semi-hermetic twin-screw compressor, bearing long life, can ensure long operation configuration of high-efficiency motor accurate capacity control, so that the compressor compression efficiency is higher.

3, the jade condenser for stepless cooling capacity adjustment can achieve continuous adjustment of the cooling capacity in the zone can achieve accurate control of the chilled water temperature.

4, all aspects of the compressor volume ratio can be selected, effectively avoiding excessive or insufficient to cause additional energy consumption.

5, the use of stainless steel insulation tank, durable, easy to clean and maintain.

6, perfect safety protection devices including high and low voltage protection switch, overload protection switch, time-delay protection, over-temperature protection, reverse-phase under-phase protection and anti-icing protection set.

7、Adopting high efficiency shell and tube evaporator and seamless spiral copper tube with long service life to ensure good water quality.

8、Adopt high efficiency shell and tube condenser to conduct heat quickly and greatly improve the cooling speed, good heat transfer effect.

9, standard RS485 communication interface can communicate with the host to achieve automation and centralised monitoring.

10, this series of chiller can be customised acid and alkali type.

11, refrigerant R134A/R407C/R410A environmental protection refrigerant can be selected.

12、Ultra-low temperature chiller can reach below -15C (optional).

Range of application

Mainly used in the plastic industry mould cooling, shorten the moulding cycle, accelerate the product shape, so as to improve the quality of the product. At the same time, it is also widely used in other industries that need cooling, such as electroplating industry, food industry, electronic industry and ultrasonic machinery cooling.

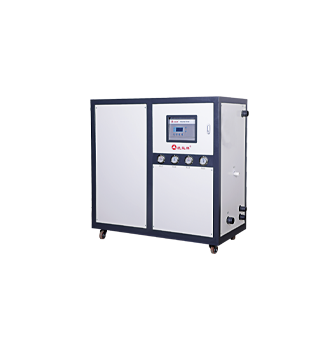

Water-cooled specification table

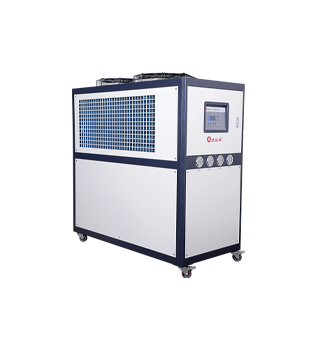

Air-cooled type specification table
